中接管及其他類連接器


  中接管及其他類連接器


　
　

MAXIMUM ELECTRIC CURRENT:
A.W.G. 222018161412
AMP. 91217183035

MAXIMUM ELECTRICAL RATING: 105°C 600 VOLTS
INSULATION MATERIAL: NYLON
INSULATION COLOR:
22-18A.W.G.: RED      18-14A.W.G.: BLUE
12A.W.G.: YELLOW
TERMINAL MATERIAL: PHOSPHOR BRONZE

Product List (Total: 3 records)
Data Source Page NO.：P.308,

WIRE
RANGE
A.W.G.
mm2		 ITEM NO. Suggested Mate
With Male Tab

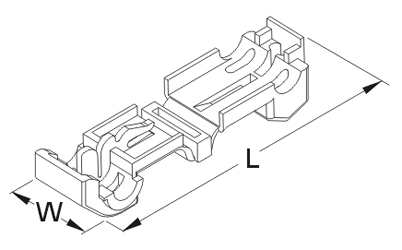

(Thickness X Width)		 DIMENSION inch(mm) FIGURE COLOR Q'TY
BOX
W L
22-18
A.W.G.

0.5-0.75
mm2

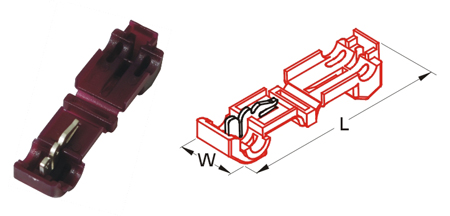

878006

MDFNY1-250
(.032X.250)
 .386
9.8 		1.457
37
RED
 500
18-14
A.W.G.

0.75-2.5
mm2

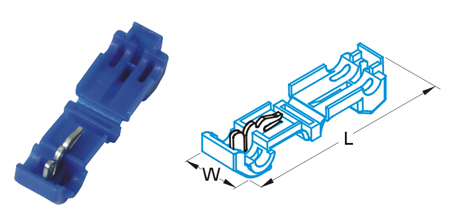

878106

MDFNY2-250
(.032X.250)
 .386
9.8 		1.457
37
BLUE
 500
12
A.W.G.

4
mm2

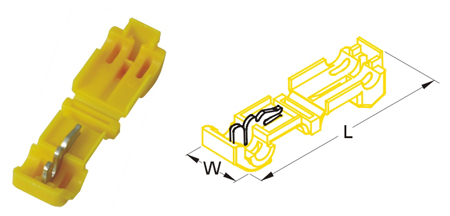

878206

MDFNY5-250
(.032X.250)
 .386
9.8 		1.457
37
YELLOW
 500

Data Source Page NO.：P.308,
